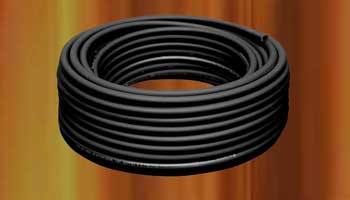

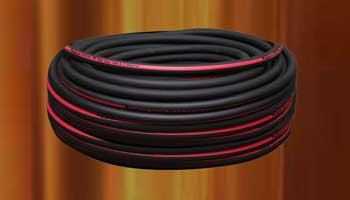

Rubber Fire Hose

Technical Specification

Material : Made up of high quality virgin Rubber Compound.
Reinforcement :High pressure Nylon Yarn.
Bend Radius : Can work at a radius of 5 times to the nominal bore size as per BIS standard.
Working Temperature : It  can work at 150oF for short term and for long term 110oF.
Impact Resistance : Does not break easily. Highly impact resistant material.
Chemical Resistance : Good resistance properties with most of chemicals. Fair to good. It is resistant to acid, alkali and almost all inorganic chemicals.
Fire Regarding Properties : Our high quality Rubber Compound has inherently superior fire retarding properties due to its chlorine content. Its ignition temperature is as high as 455oC, and is a material with less risk for fire incidents since it is not ignited easily. It is a self extinguishing material and dose not continue to burn. Therefore it is suitable for safety applications.



  Size (ID)

  Type

  Working Pressure

  Bursting Pressure

  10.00mm

  Type-1

  6 Kg/cm2

  20 Kg/cm2

  10.00mm

  Type-2

  10 Kg/cm2

  32 Kg/cm2

  12.50mm

  Type-1

  6 Kg/cm2

  20 Kg/cm2

  12.50mm

  Type-2

  10 Kg/cm2

  32 Kg/cm2

  16.00mm

  Type-1

  6 Kg/cm2

  20 Kg/cm2

  16.00mm

  Type-2

  10 Kg/cm2

  32 Kg/cm2

  20.00mm

  Type-1

  6 Kg/cm2

  20 Kg/cm2

  20.00mm

  Type-2

  10 Kg/cm2

  32 Kg/cm2



Physical & Mechanical Properties of Hose

  Density

  1.23 - 1.25

  Tensile Strength (Lining)

  7 N/mm2

  Tensile Strength (Cover)

  5 N/mm2

  Thread Strength

  8 GPD / Denier

  Elongation

  250%

  Melting Point

  approx 185oC

  Loss in Weight

  1.92%

  Adhesion Between Lining & Cover

  2.8 KN/m

  Stiffness

  5 Times



Criteria Rubberring Rubber Hose Conventional Rubber Hose

  Fire Resistance

  Fire resistant, self extinguishing

  is not fire resistant

  Effect of UV Rays

  Resistance to degradation from UV rays it
  won’t break down in the sun over time

  is not resistant to UV rays it will
  break down in the sun over time

  Weight

  Light in weight

  Heavy in weight

  Length

  Long continues length

  Short length, no fix length

  Life

  Very durable

  Less durable

  Pressure

  Better pressure sustainability

  Less pressure sustainability

  Chemical Stability

  Chemically stable

  Less chemically stable

  Abrasion Resistance

  It can outlasts rubber hoses up to 10 times

  It cannot outlasts too long

  Clean Core Tube

  It’s core tube don’t introduce debris in
to the  inside of hose

  It’s core tube introduce debris
  in to the inside of hose

  Finish

  Smooth surface finish, looks better

  Rough surface finish
